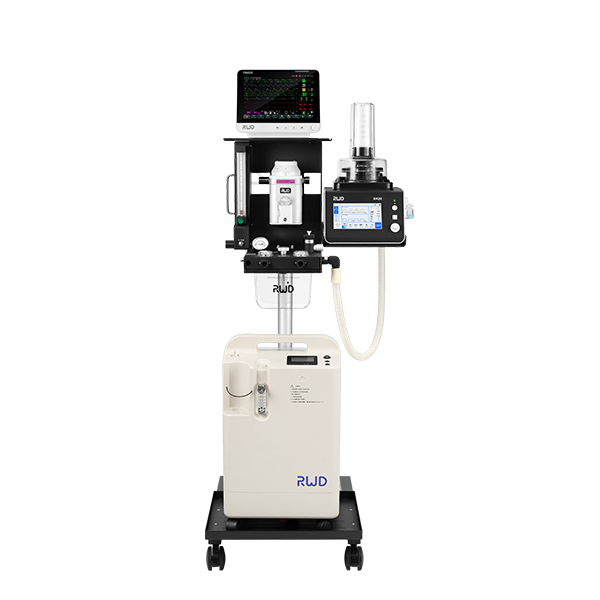

Combination Solutions of Ventilator to Anesthesia System for large animals

We aims to support veterinary clinicians by providing veterinary anesthesia one-stop solution. It includes all important aspects: oxygen generation, anesthesia, waste anesthetic gas absorption, monitoring and mechanical ventilation. Perfectly designed for ease of use, simplicity and safety, good for all pet hospitals and clinics.

Technical Specifications

  • Feature
  • Technical Specification
  • Order list

1.High accuracy vaporizer (Each one has an independent test report)
2.APL valve for quick-occlusion.
3.Rail-mounted CO₂ absorber, so easy to install and disassemble.
4.One switch to shift between rebreathing and non-rebreathing circuits.
5.20 sets of parameters can be stored and retrieved by vets
6.Electronically driven by a high-per-formance turbine, no more driven gas.
7.Auto system leak test: Graphical guidance for quick start.
8.ECG: Standard with five leads. EtCO₂: microflow monitoring is more friendly for small animals with low tidal volume.

Anesthesia Machine:
Applicable to animals that weight within 100kg.
O₂ flowmeter: 0.1 to 4 L/min
CO₂ absorber:2100cc
APL pressure indication:-20~ +100cmH₂O

Ventilator:
Respiratory rate: 2~60 bpm
I:E: 1:1.0~1:4.0
Tidal volume: 4~1500ml
Peak inspiratory pressure: 5~50 cmH₂O

Monitor:
Display: RM700-10.1 inches TFT LCD screen, RM800 -12.1 inches, RM800T-12.1 inches touch screen; Resolution:1280×800 pixels
Parameters: ECG, SpO₂, EtCO₂, NIBP, TEMP, RESP

Description quanty
Veterinary Anesthesia Machine   1PCS
Intelligent Animal Ventilator 1PCS
Veterinary Monitor 1PCS
