    Animal Anesthesia Vaporizers and Accessories

    • RWD anesthesia machine vaporizer adopts advanced design to accurately control the output concentration of anesthesia. Pour Fill, Easy Fill, and Key Fill, Cagemount available.
    • Stable concentration output unaffected by flow, temperature and pressure
    Quote

    Diverse Options

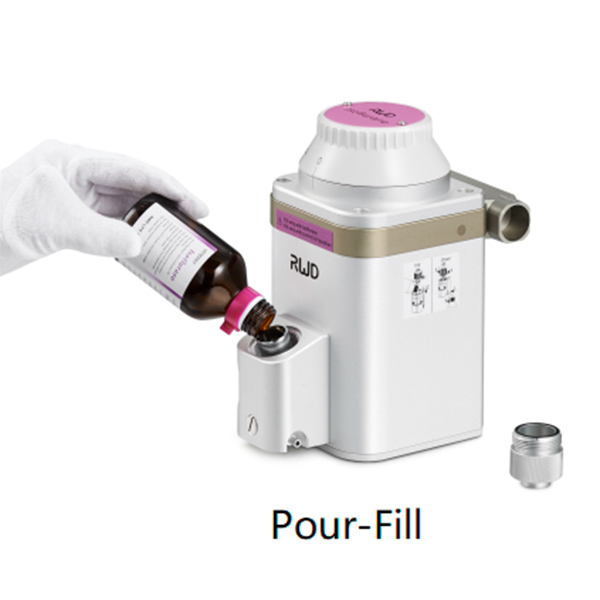

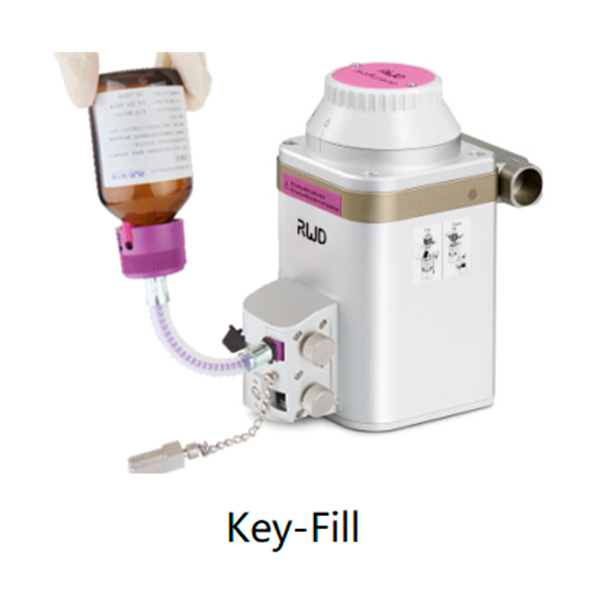

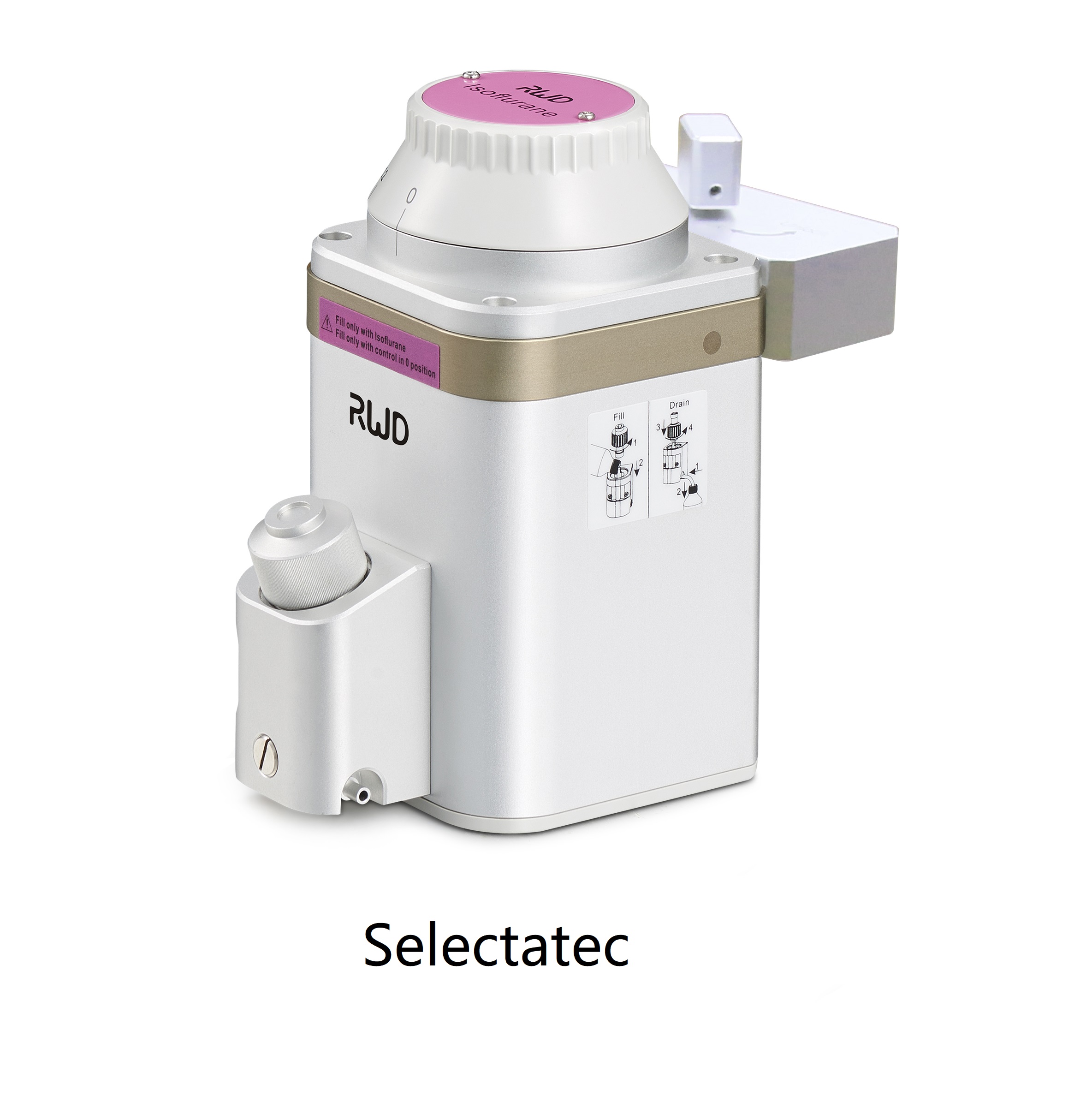

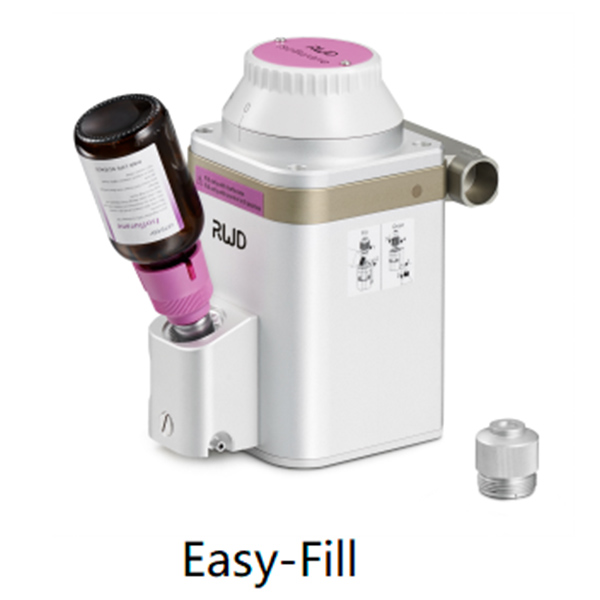

    • Pour Fill, Easy Fill, and Key Fill, Cagemount and Selectatec available

    All Check

    • Completely calibrated and tested one by one

    Technical Specifications

    • Technical Parameters
    • Model Information
    • Features
    Capacity >120ml
    Working temperature range 10℃ to 35℃
    Concentration range 0-5% or 0-8%
    Cat No. Description
    R580S Vaporizer type 1 – Pour Fill – Cagemount
    R581S Vaporizer type 2 – Pour Fill – Cagemount
    R582S Vaporizer type 3 – Easy Fill – Cagemount
    R583S Vaporizer type 4 – Easy Fill – Cagemount
    R584S Vaporizer type 9 – Key Fill-Cagemount
    R585S Vaporizer type 10 – Key Fill – Cagemount
    R580-IO Vaporizer Endcaps (1 pair)
    R580-SA Vaporizer Suspension Assembly
      • The built-in temperature compensator ensures the stable concentration of anesthesia gas at different temperatures and flow rates, the flow range is 0.2-10L/min
    • Mixed anesthetia gas output pressure range △ P ≤ 2.5kPa
    • Applicable temperature range: 10-35 ℃
    • Good tightness, internal 50kPa pressure can be maintained, zero leakage, safe and reliable
    • Internal capacity is not less than 120ml, and the range of vaporizer concentration is 0-5% or 0-8%)
    • Anti-accident open lock structure and closed state security protection structure to ensure safety
    • The average filling rate is greater than 2ml/s, and the dosing adapter can withstand the pressure of 0.1mpa without leakage(Key Fill)
