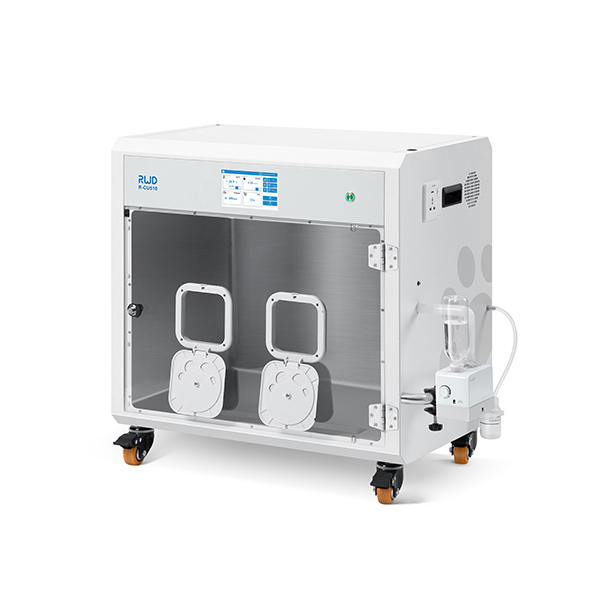

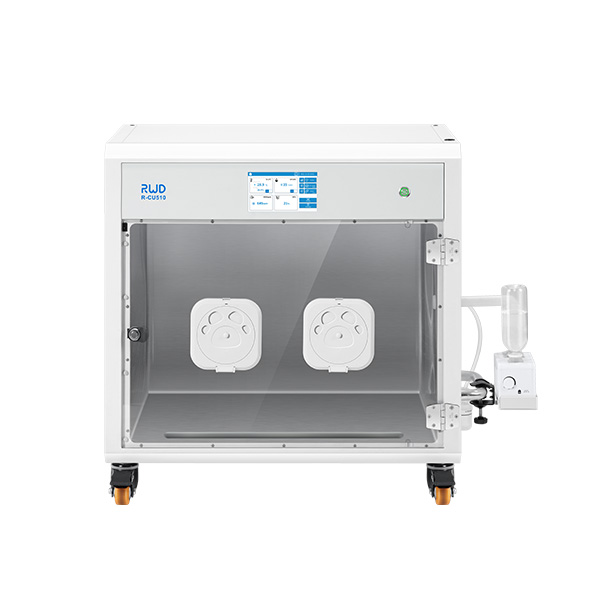

    R-CU510/R-CU600Pro Versatile Animal ICU

    R-CU510 Versatile Animal ICU can accurately control the temperature, humidity, O2 concentration and CO2 concentration, providing a more comfortable medical care environment to help animals recover faster. It is indicated for patients with postoperative recovery, shocks, head injury, neurologic disease, tissue hypoxia, cardiopulmonary disease, etc.

    Quote

    Technical Specifications

    • Product Advantages
    • Specifications
    • Configuration
    • Digital operation:7-inch touchscreen for best simplicity, all parameters are clear at a glance
    • Smart pre-set: Parameters setting automatically matching animal species-age-disease
    • Three-sides heating and floor  cooling by the semiconductor  temperature control element
    • Maintain proper humidity: Dehumidification by semiconductor technology and ultrasonic humidification
    • Support oxygen therapy: convenient to provide supplemental oxygen for small animals
    • Environmental purification：UVC lamp & Anion function for effective sanitation management, to avoid patients cross infection
    • Carbon dioxide automatic removal：Effectively prevent CO2 accumulation through CO2 absorbent and ventilation, to avoid causing animal breathing disorders
    • Non-fully enclosed design, no need to worry about suffocation caused by power outage
    • Built-in failure alarm : abnormal high/low temperature, humidity, sensor failure and CO2 levels
    • Tempered glass windows for better observation
    • Compatible with atomizer
    Item Specification
    Heating/Cooling Method Semiconductor Components
    Main Material     SECC, tempered glass
    Temperature Control Range R-CU510/R-CU600Pro:15.0-40.0℃(59.0~104.0℉)； R-CU509:20.0-40.0℃(68.0~104.0℉)； accuracy :±0.5℃
    Humidity Control Range 40-70%RH
    O2 Concentration Control Range 20-60％
    CO2 concentration monitoring 500-4000PPM
    LED Lamp Level 1~Level 3
    Anion ＞8×106PCS/cm3（Anion injection port 20cm-30cm）
    External Power Outlet 500W
    Display 7-inch LCD Touchscreen
    Power Supply Voltage AC 100~120V / 220~240V, 50/60Hz
    Weight 50KG (Net weight), 65KG(Packaged weight)
    Size External：W 970 mm * L 530 mm * H 790mm

    Internal: W 690mm* L 470mm * H 490mm



    Description R-CU510/R-CU600Pro R-CU509
    Smart pre-set ● ●
    Three sides heating ● ●
    Floor cooling ● ○
    Dehumidifier ● ●
    Humidifier ● ●
    Automatic excess removal of CO2 ● ●
    Oxygen concentration indicator ● ●
    Oxygen concentration control ● ●
    Temperature indicator ● ●
    Humidity indicator ● ●
    LED lamp ● ●
    UVC lamp ● ●
    Anion ● ●

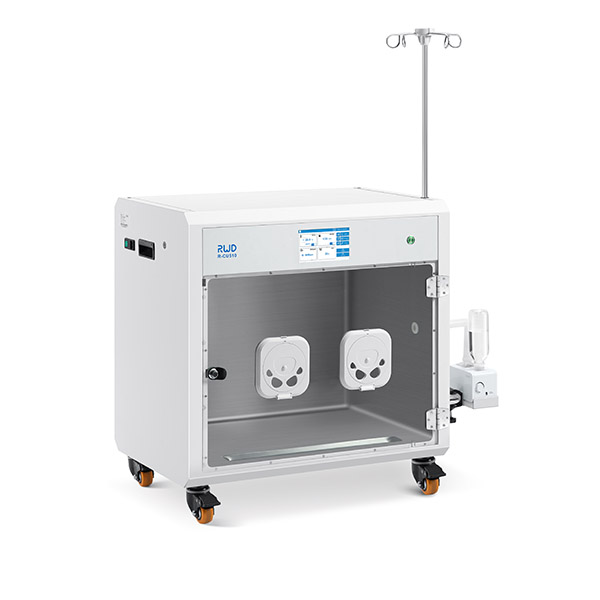

    IV stand pole ● ●
    Exteral outlet ● ●
    Rotary wheel ● ●
    Fixed feet ○ ○

    Standard configuration ● Optional configuration ○
