    RM700/RM800/RM800T Veterinary Monitor

    RM700/RM800/RM800T Veterinary monitor is equipped with veterinary-specific algorithms and compact design. It fulfills your primary requirements in various sceneries for vet patients. Mutiple parameters include SpO₂, ECG, NIBP, TEMP, RESP, Microflow ETCO₂.

    Quote

    Technical Specifications

    • Features
    • Technical Parameters
    • Order Information
    • 1/12.1 inches TFT LCD screen with all parameters clearly visible
    • Microflow EtCO2 technology, minimal sampling rate and more accurate data. (Optional)

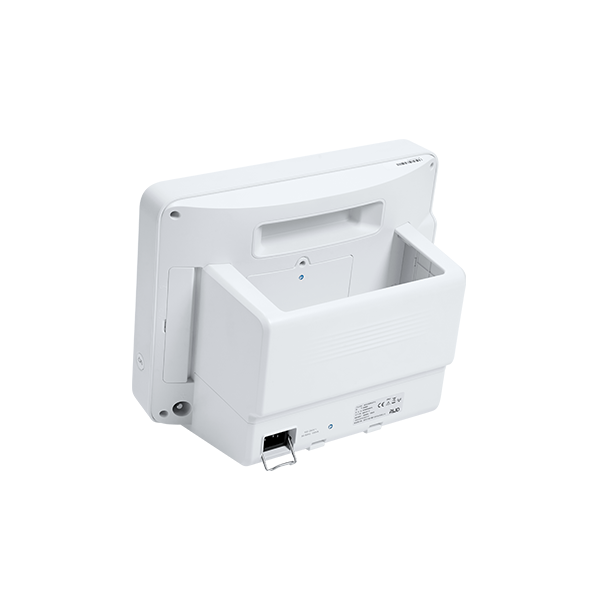

    • Compact design: back cabinet for easy accessory storage and less than 4kg weight
    • New animal blood pressure algorithm for fast and accurate measurement
    • Multi-lead synchronized ECG signal analysis for better detection, with 5 leads
    • IP perfusion index measurable for more accurate SpO2
    Display RM700-10.1 inches TFT LCD screen, RM800 -12.1 inches,  RM800T-12.1 inches touch screen; Resolution:1280×800 pixels
    Size 198mm(H) * 320mm(W)* 262mm(L)
    Weight ＜4kg
    Data Storage Trends: 180 hours

    Parameter alarms: 3000

    NIBP measurements: 2400 sets

    Full-disclosure waveforms: 72 hours at maximum
    ECG
    Input mode 5 leads
    HR range 10-350bpm
    SpO2
    Measuring range 0~100%
    Accuracy At 70~100%, ±2%

    At 0~69%, unspecified
    PI measurement range At least 0.05~20.00%
    EtCO2
    Measurement method Microflow
    Sample flowrate 50±10mL/min
    EtCO2/FiCO2 measurement range 0%～19.7% (0mmHg～150mmHg)


    NIBP
    Operation mode Manual, Auto, STAT, Sequence
    Measurement method Automatic Oscillometry
    Cuff pressure measuring range 0~300mmHg
    Measurement parameters SYS, DIA, MAP,PR
    TEMP
    Measuring range and accuracy 0.0~50.0℃ (32℉~122℉), 0.1℃ or 0.1℉
    RESP
    Measurement range 0~150 rpm
    Accuracy ±2 rpm or ±2%, whichever is greater
    Model Description
    RM700 Veterinary Monitor with 10.1 inches screen, SpO2,ECG,RESP,HR,NIBP and TEMP
    RM800 Veterinary Monitor with 12.1 inches screen SpO2,ECG,RESP,HR,NIBP , TEMP and Microflow CO2
    RM800T Veterinary Monitor with 12 inches touch screen SpO2,ECG,RESP,HR,NIBP, TEMP and Microflow CO2
