  • ROC-5A

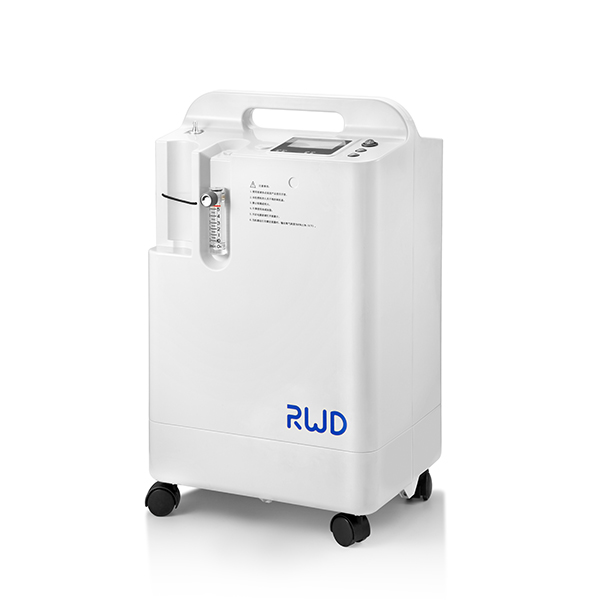

ROC-5A Veterinary Oxygen Concentrator

  • ROC-5A/ROC-8A Veterinary Oxygen Concentrator is designed specifically for veterinary use. The high purity oxygen is separated from the air by molecular sieve pressure swing adsorption (PSA) technology.

One for Multi-use

  • 5L/min flow rate, supply oxygen for
    anesthesia, postoperative recovery, ICU,
    first aid and etc

Cost-effective

  • Using only room air, it draws in and
    generates medical grade oxygen (USP93%),
    never run out of oxygen

Quart-filtration System

  • Ceramic fiber · Intake filter cloth ·
    Build-in filter · Humidifier bottle 99.999%
    bacteria, viruses ,and odor can be
    removed effectively

Time Preset

  • Support presetting oxygen-producing
    time, and will automatically stop working
    when time up

Alarm

• Low O₂ concentration alarm and abnormal alarms

Quiet design

  • Quiet design to offer you a silent and comfortable working environment

Technical Specifications

  • Technical Specifications
  • Model information
Cat No. ROC-5A ROC-8A
Flow Rate 0-5L/min 0-8L/min
Net Weight 22kg 24kg
Power Rating 320VA 550VA
Veterinary Oxygen concentration 93%±3%
Working voltage ~230 V/50Hz; ~110V/60Hz
Outlet pressure 40-70kpa
Dimension 300*360*600mm
Noise ≤43dB
Oxygen Tubing 2m*2
Cat No. Description
JAY-5BW Oxygen Generator (Main Body)
R510-25-86 9/16 TO Φ8 Cone Connector (1 piece)
R-ST-60A Silicone Tubing – ID:6.0,OD:10.0mm
A5 User Manual
V-1 Air Filter
